DY-M
Hypoxia Workstation
The DY-M is a compact hypoxia workstation designed to balance space efficiency with experimental precision, integrating operation, incubation, and observation in a single system. It enables simulation of in vivo hypoxic microenvironments and supports stable cell culture and research under controlled hypoxic conditions.
Precise O2 & CO2 Control
O₂ Control Range: 0.1%–25.0%, in 0.1% increments
CO₂ Control Range: 0%–20.0%, in 0.1% increments (upgradeable to 0–60.0%)
- Optional Built-in Air Pump: Eliminates the need for an external compressed air source (O₂ control range: 0.1%–18%)
Optional Anaerobic Control: Enables integrated hypoxia/anaerobic dual-mode operation
Seamless Entry System (SES)
Rapid sleeve evacuation establishes an anaerobic barrier within 12 seconds
Maintains continuous and stable hypoxic conditions during routine operation
90° quick-open ports enable intuitive handling and improved internal space utilization
Flexible operation modes adapt to different workflows and user habits
Advanced Gas Circulation Design
Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
Integrated bent-panel construction with anti-condensation viewing window technology ensures clear visibility and enhanced durability
Multi-Stage Hypoxia Cycle
Supports 4, 10, or more automated gas cycling stages to suit different experimental needs
Users can set cycle duration, gas concentrations, and the number of cycles according to their experiment requirements
Special Airlock Purge System
Rapid purge: Automatically detects the oxygen level in the workspace and adjusts the airlock O₂ concentration to match
Custom purge: Allows on-screen setting of O₂ purge concentration from 0 to 20.9% for special operations
HEPA Filtration & Pressure Safety Protection
Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
High-response pressure relief valve precisely manages sudden pressure fluctuations, ensuring system and operator safety
Built-in pressure-stabilizing water/oil reservoir buffers continuous pressure changes, maintaining a stable experimental environment
Intelligent Safety Protection
Automatic alarm for low gas cylinder pressure
Real-time chamber pressure monitoring
Automatic leak detection with alarm and reduced gas intake frequency
Intelligent dual locking system with auto-lock and one-touch manual lock

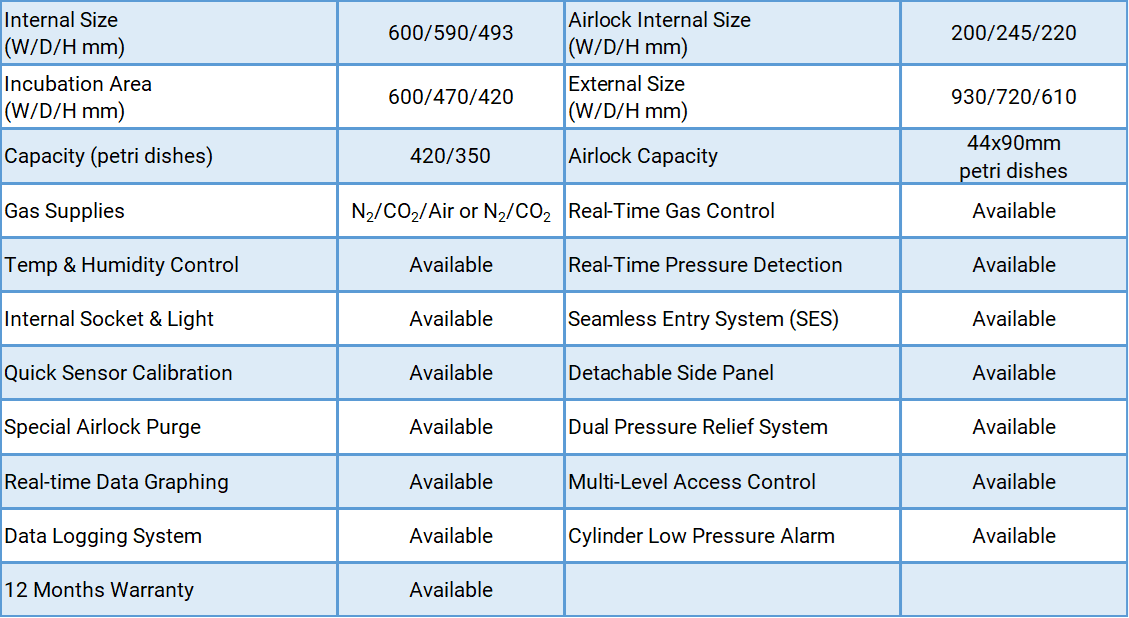

DY-M Specification
| Internal Size (W/D/H mm) | 600/590/493 | Airlock Internal Size (W/D/H mm) | 200/245/220 |
| Incubation Area (W/D/H mm) | 600/470/420 | External Size (W/D/H mm) | 930/720/610 |
| Capacity (petri dishes) | 420/350 | Airlock Capacity | 44x90mm petri dishes |
| Gas Supplies | N₂/CO₂/Air or N₂/CO₂ | Real-Time Gas Control | Available |
| Temp & Humidity Control | Available | Real-Time Pressure Detection | Available |
| Internal Socket & Light | Available | Seamless Entry System (SES) | Available |
| Quick Sensor Calibration | Available | Detachable Side Panel | Available |
| Special Airlock Purge | Available | Dual Pressure Relief System | Available |
| Real-time Data Graphing | Available | Multi‑Level Access Control | Available |
| Data Logging System | Available | Cylinder Low Pressure Alarm | Available |
| 12 Months Warranty | Available |
Key Specification:
Our workstation ensures precise, reliable culture conditions with:
O₂ Control Range: 0.1%–25.0%, in 0.1% increments
CO₂ Control Range: 0–20.0%, in 0.1% increments
- Humidity Control: Room humidity to 85%
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- Pressure Range: 0.00 – 0.50 kPa, in 0.01kPa increments
- ULPA Filtration System: High-efficiency ULPA filtration for particulate contamination control
- Programmable Multi-stage Hypoxia Cycle: Automated adjustments of O2 and CO2 concentrations for efficient sample stimulation
- Cable Port: Integrated cable access for internal equipment connection
- Sidewall Pipette Holder: Integrated sidewall-mounted pipette holder
- Single Plate Entry System (SPES): Rapid single-plate transfer system
- Anaerobic System: Combined hypoxic and anaerobic operation in one workstation
- Additional Options Shown Below
Optional Feature
| Programmable Multi-stage Hypoxia Cycle | DY016 | Cable Port | DY009 |
| ULPA Filtration System | DY007 (Two for DY-TM) | Airlock Slide Door | DY015 |
| Humidifier For Rapid Humidity Control | DY001 | Switchable Dark‑mode Front Panel | DY004 |
| Additional Socket (Second Socket) | DY020 | Single Plate Entry System (SPES) | DY006 |
| Sidewall Pipette Holder | DY017 | Vac Line Connection Port | DY008 |
| Anaerobic System | DY002 | Gas Sample Port | DY018 |
| Delete Detachable Front Panel (Exclude DY-M) | DY101 |
| Model | M series | L series | XL series | XLP series | XXL series | TM series | D series | XD series | TMD series | ||||||||||
| Usable Internal Space | W(mm) | 600 | 118L | 800 | 158L | 780 | 223L | 780 | 223L | 780 | 223L | 1120 | 320L | 800 | 316L | 780 | 446L | 1120 | 640L |
| D(mm) | 470 | 470 | 520 | 520 | 520 | 520 | 470 | 520 | 520 | ||||||||||
| H(mm) | 420 | 420 | 550 | 550 | 550 | 550 | 420 | 550 | 550 | ||||||||||
| Internal Size | W(mm) | 600 | 174L | 800 | 232L | 780 | 308L | 780 | 308L | 780 | 308L | 1120 | 442L | 800 | 464L | 780 | 616L | 1120 | 884L |
| D(mm) | 590 | 590 | 640 | 640 | 640 | 640 | 590 | 640 | 640 | ||||||||||
| H(mm) | 493 | 493 | 618 | 618 | 618 | 618 | 493 | 618 | 618 | ||||||||||
| External Size | W(mm) | 930 | 1130 | 1115 | 1210 | 1210 | 1500 | 2000 | 1980 | 2800 | |||||||||
| D(mm) | 720 | 720 | 800 | 800 | 800 | 800 | 720 | 800 | 800 | ||||||||||
| H(mm) | 610 | 610 | 735 | 735 | 735 | 735 | 610 | 735 | 735 | ||||||||||
| Interlock Internal Size | W(mm) | 200 | 10.8L | 200 | 10.8L | 200 | 10.8L | 280 | 28.4L | 280 | 39L | 200 | 10.8L | 220 | 11.9L | 220 | 11.9L | 220 | 11.9L |
| D(mm) | 245 | 245 | 245 | 350 | 400 | 245 | 245 | 245 | 245 | ||||||||||
| H(mm) | 220 | 220 | 220 | 290 | 350 | 220 | 220 | 220 | 220 | ||||||||||
