YY-M
Precise Pressure Control
The YY-M is a compact anaerobic workstation featuring precise pressure control for reliable anaerobic regulation. Designed to optimize space efficiency without compromising performance, it is ideal for laboratories with limited space and demanding experimental requirements.
Automatic Pressure Control System
High-precision pressure control (0.1 kPa accuracy) with continuous monitoring to maintain chamber integrity
Intelligent interface with one-touch automatic pressure and gas inlet control
Real-time display of pressure, temperature, and humidity
Optional oxygen sensor integration to expand monitoring capabilities
Seamless Entry System (SES)
Rapid sleeve evacuation establishes an anaerobic barrier within 12 seconds
Maintains continuous and stable anaerobic conditions during routine operation
90° quick-open ports enable intuitive handling and improved internal space utilization
Flexible operation modes adapt to different workflows and user habits
Advanced Gas Circulation Design
Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
Integrated bent-panel construction with anti-condensation viewing window technology ensures clear visibility and enhanced durability
HEPA Filtration & Pressure Safety Protection
Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
High-response pressure relief valve precisely manages sudden pressure fluctuations, ensuring system and operator safety
Built-in pressure-stabilizing water/oil reservoir buffers continuous pressure changes, maintaining a stable experimental environment

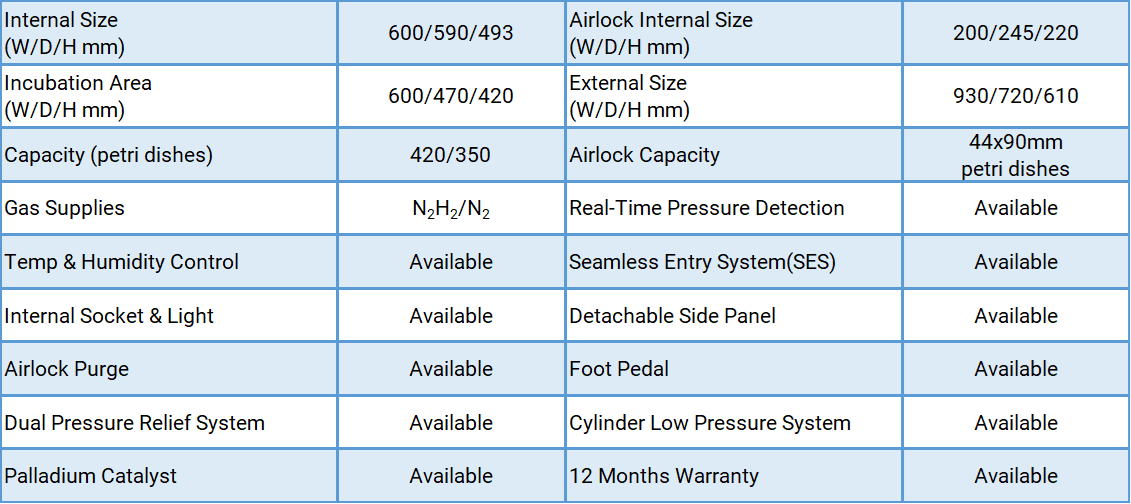

YY-M Specification
| Internal Size (W/D/H mm) | 600/590/493 | Airlock Internal Size (W/D/H mm) | 200/245/220 |
| Incubation Area (W/D/H mm) | 600/470/420 | External Size (W/D/H mm) | 930/720/610 |
| Capacity (petri dishes) | 420/350 | Airlock Capacity | 44x90mm petri dishes |
| Gas Supplies | N₂H₂/N₂ | Real-Time Pressure Detection | Available |
| Temp & Humidity Control | Available | Seamless Entry System(SES) | Available |
| Internal Socket & Light | Available | Detachable Side Panel | Available |
| Airlock Purge | Available | Foot Pedal | Available |
| Dual Pressure Relief System | Available | Cylinder Low Pressure System | Available |
| Palladium Catalyst | Available | 12 Months Warranty | Available |
Key Specification:
Our workstation ensures precise, reliable culture conditions with:
- O₂ Monitoring Range (Option): 0.0% – 25%, in 0.1% increments
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- Humidity Control: Room humidity to 85%
- Pressure Range: 0.00 – 0.50 kPa, in 0.01kPa increments
- ULPA Filtration System: High-efficiency ULPA filtration for particulate contamination control
- Built-in O₂ Monitoring with Alarm: Real-time monitoring of oxygen concentration inside the chamber with alarm notification
- Cable Port: Integrated cable access for internal equipment connection
- <5 ppm Oxygen Control: Ultra-low oxygen control capability below 5 ppm
- Single Plate Entry System (SPES): Rapid single-plate transfer system
- Additional Built In PPM O2 Sensor Monitoring Range: 0 – 10000 ppm, with ±1% FS
- Cooling System with Dehumidification: Enables low-temperature conditions for specialized experiments
- Additional Options Shown Below

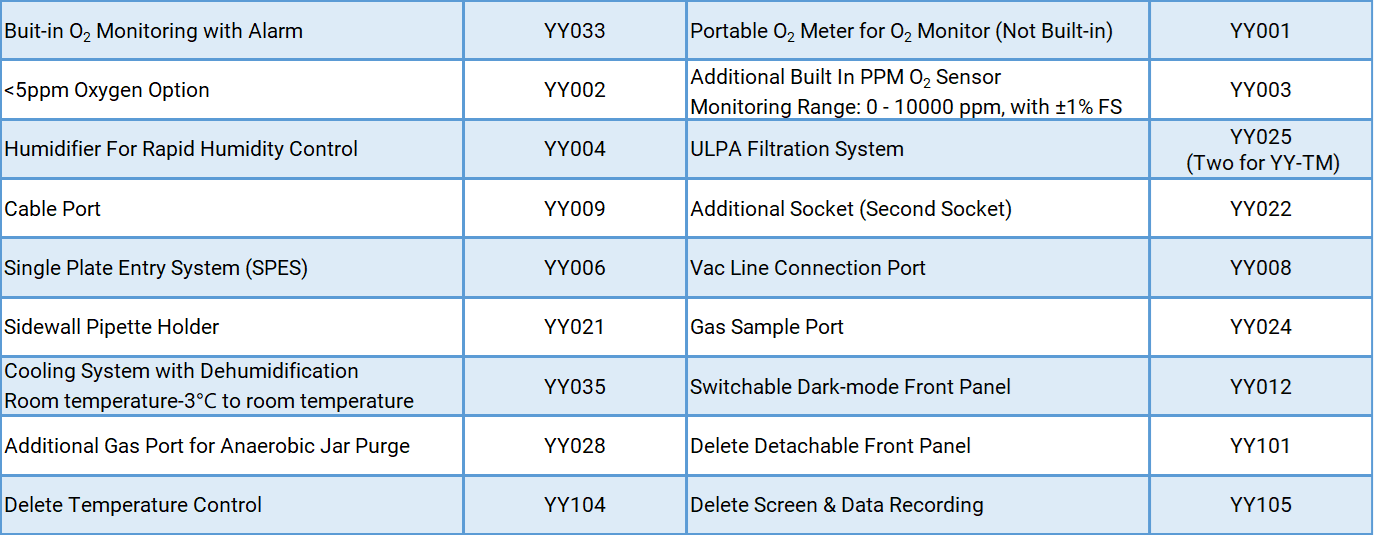

Optional Feature
| Buit-in O2 Monitoring with Alarm | YY033 | Portable O2 Meter for O2 Monitor | YY001 |
| <5ppm Oxygen Option | YY002 | Additional Built In PPM O2 Sensor | YY003 |
| Humidifier For Rapid Humidity Control | YY004 | ULPA Filtration System | YY025 |
| Cable Port | YY009 | Additional Socket (Second Socket) | YY022 |
| Single Plate Entry System (SPES) | YY006 | Vac Line Connection Port | YY008 |
| Sidewall Pipette Holder | YY021 | Gas Sample Port | YY024 |
| Cooling System | YY035 | Switchable Dark‑mode Front Panel | YY012 |
| Additional Gas Port for Anaerobic Jar Purge | YY028 | Delete Detachable Front Panel | YY101 |
| Delete Temperature Control | YY104 | Delete Screen & Data Recording | YY105 |
| Model | M series | L series | XL series | XLP series | XXL series | TM series | D series | XD series | TMD series | ||||||||||
| Usable Internal Space | W(mm) | 600 | 118L | 800 | 158L | 780 | 223L | 780 | 223L | 780 | 223L | 1120 | 320L | 800 | 316L | 780 | 446L | 1120 | 640L |
| D(mm) | 470 | 470 | 520 | 520 | 520 | 520 | 470 | 520 | 520 | ||||||||||
| H(mm) | 420 | 420 | 550 | 550 | 550 | 550 | 420 | 550 | 550 | ||||||||||
| Internal Size | W(mm) | 600 | 174L | 800 | 232L | 780 | 308L | 780 | 308L | 780 | 308L | 1120 | 442L | 800 | 464L | 780 | 616L | 1120 | 884L |
| D(mm) | 590 | 590 | 640 | 640 | 640 | 640 | 590 | 640 | 640 | ||||||||||
| H(mm) | 493 | 493 | 618 | 618 | 618 | 618 | 493 | 618 | 618 | ||||||||||
| External Size | W(mm) | 930 | 1130 | 1115 | 1210 | 1210 | 1500 | 2000 | 1980 | 2800 | |||||||||
| D(mm) | 720 | 720 | 800 | 800 | 800 | 800 | 720 | 800 | 800 | ||||||||||
| H(mm) | 610 | 610 | 735 | 735 | 735 | 735 | 610 | 735 | 735 | ||||||||||
| Interlock Internal Size | W(mm) | 200 | 10.8L | 200 | 10.8L | 200 | 10.8L | 280 | 28.4L | 280 | 39L | 200 | 10.8L | 220 | 11.9L | 220 | 11.9L | 220 | 11.9L |
| D(mm) | 245 | 245 | 245 | 350 | 400 | 245 | 245 | 245 | 245 | ||||||||||
| H(mm) | 220 | 220 | 220 | 290 | 350 | 220 | 220 | 220 | 220 | ||||||||||
Interested in different sizes or customized dimensions? Click the button below for more options:
Dual Workstation with Individual Control:
