Anaerobic Workstation Plus
YY-TM Plus

Provide a high anaerobic environment for microbiome research

The Anaerobic Workstation (YY Plus) features a dual system utilizing an O2 sensor and pressure detector to achieve and maintain precise anaerobic conditions. YY-TM Plus is our largest stanard anaerobic model, capable of achieving anaerobic conditions in around 35 minutes.

Equipped with an advanced airway design, special entry system, and precise temperature and humidity control, the workstation ensures stable, high-anaerobic conditions. Additionally, the YY Plus has a built-in interlock that enables quick sample transfer without disturbing the internal anaerobic environment.

This workstation provides a controlled and consistent environment for the culture, operation, and observation of anaerobic microorganisms, making it ideal for microbiology research. Applications include studies on intestinal microorganisms, oral-related anaerobic bacteria, food safety, and brewing.

Available in various sizes and configurations, our anaerobic workstation offers multiple optional features such as H2 monitoring, remote control, and cable ports. Customized sizes are also available to meet specific research needs, providing increased flexibility.

  • Integrated Micro Pressure & Oxygen Sensing System
    √ Real-time oxygen monitoring ensures precise gas regulation
    √ Accurate micro-pressure detection with a precision of 0.1 KPA
    √ Continuous monitoring and automatic adjustment of the intake system based on pressure and oxygen levels
  • Precise Temperature and Humidity Control
    √ Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
    (Optional high/low temperature control)
    √ Humidity Control: Room humidity to 85%
  • Advanced Gas Circulation Design:
    √ Ensures an exceptional level of homogeneity in gas distribution throughout the workstation
    √ Consistent airflow contributes to accurate and reliable experimental outcomes
    √ HEPA 14 filter available for superior particle removal and a pristine environment
  • Seamless Entry System (SES):
    √  Efficient vacuum pump grants direct workstation access in 10-12 seconds
    √  Operable with lab gloves, ensuring seamless and convenient handling
    √  Glove port caps easily “parked” in special holders, optimizing workspace utilization
  • Innovative Acrylic Construction:
    √ Panels molded from a single piece of acrylic to reduce condensation and microbial growth
    √ Improved acrylic Integrity with Annealing Process for enhanced durability
  • Dual Pressure Relief System:
    √ Equipped with a classic pressure relief valve and a special pressure relief tank for enhanced safety and precise pressure regulation

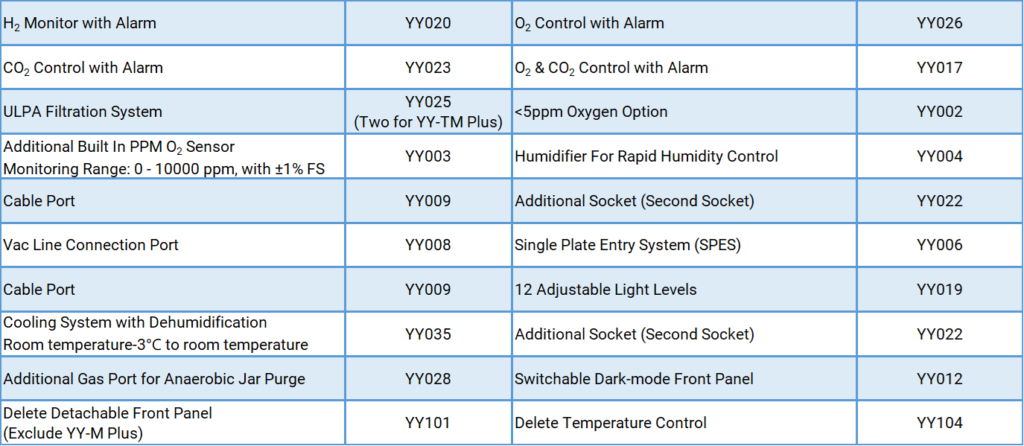

    Optional H2 sensor for real-time monitoring of hydrogen levels

For further information, please reach out to us at sales@maworde.com to request the brochure.

  • H2 Monitoring with Alarm System: Ensures safe working conditions for researchers and the workstation
  • Cable Port: Facilitates equipment integration within the workstation
  • Remote Control with Alarm: Remote control and alarms for O2, CO2, temperature, humidity, gas cylinder pressure, and gas leaks
  • Single Plate Entry System: Simplifies sample transfer
  • Interlock Purge Foot Pedal: Additional foot pedal for interlock purging, adding convenience
  • Sidewall Pipette Holder: Convenient pipette holder for easy access
  • Vacuum Suction Pipe: Simplifies waste disposal and cleaning processes
  • High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
  • Low Temperature System: Offers controlled low-temperature environments for specialized experiments
  • Microaerophilic System: Combines hypoxia and anaerobic conditions in a single workstation

Interested in different sizes or customized dimensions? Click the button below for more options:
