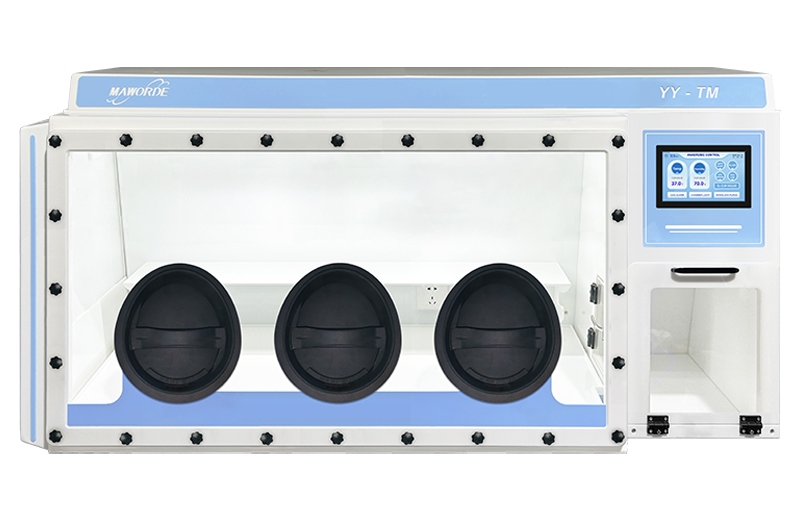

YY-TM
Precise Pressure Control
The YY-TM is Maworde largest standard anaerobic workstation, featuring precise pressure control for reliable anaerobic regulation. Designed to optimize space without compromising performance, it is ideal for large-scale and long-term anaerobic cultivation.
Automatic Pressure Control System
High-precision pressure control (0.1 kPa accuracy) with continuous monitoring to maintain chamber integrity
Intelligent interface with one-touch automatic pressure and gas inlet control
Real-time display of pressure, temperature, and humidity
Optional oxygen sensor integration to expand monitoring capabilities
Seamless Entry System (SES)
Rapid sleeve evacuation establishes an anaerobic barrier within 12 seconds
Maintains continuous and stable anaerobic conditions during routine operation
90° quick-open ports enable intuitive handling and improved internal space utilization
Flexible operation modes adapt to different workflows and user habits
Advanced Gas Circulation Design
Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
Integrated bent-panel construction with anti-condensation viewing window technology ensures clear visibility and enhanced durability
HEPA Filtration & Pressure Safety Protection
Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
High-response pressure relief valve precisely manages sudden pressure fluctuations, ensuring system and operator safety
Built-in pressure-stabilizing water/oil reservoir buffers continuous pressure changes, maintaining a stable experimental environment

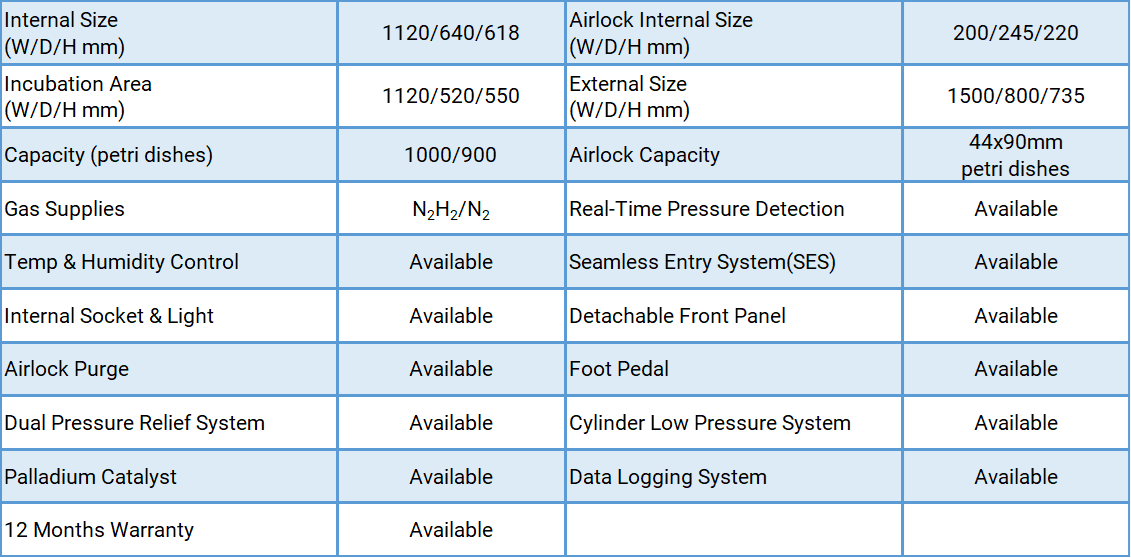

YY-TM Specification
Key Specification:
Our workstation ensures precise, reliable culture conditions with:
- O₂ Monitoring Range (Option): 0.0% – 25%, in 0.1% increments
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- Humidity Control: Room humidity to 85%
- Pressure Range: 0.00 – 0.50 kPa, in 0.01kPa increments
- HEPA Filtration System: High-efficiency HEPA filtration for particulate contamination control
- O₂ Monitoring with Alarm: Real-time monitoring of oxygen concentration inside the chamber with alarm notification
- Data Logging System: Real-time recording of all operating parameters for monitoring and analysis
- Cable Port: Integrated cable access for internal equipment connection
- <5 ppm Oxygen Control: Ultra-low oxygen control capability below 5 ppm
- Single Plate Entry System (SPES): Rapid single-plate transfer system
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Cooling System: Enables low-temperature conditions for specialized experiments
- Additional Options Shown Below
Optional Feature
Other Anaerobic Instruments

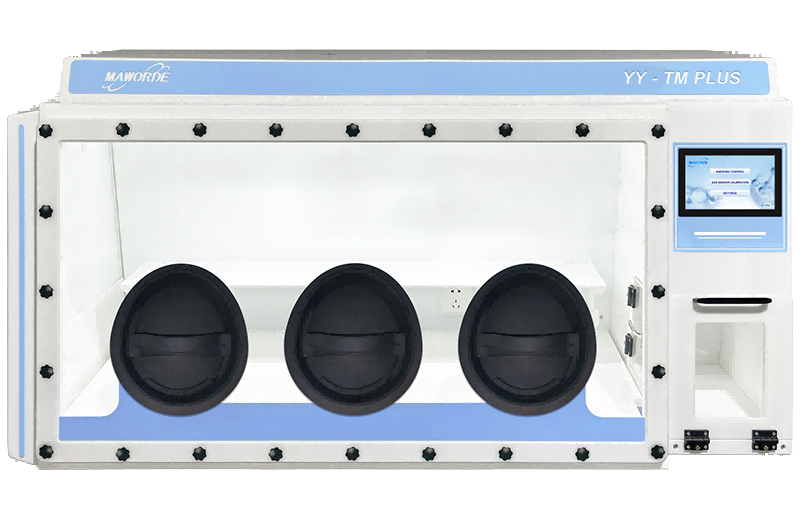

Anaerobic Workstation Plus
