DY-TME
Hypoxia Glove Box
The DY-TME is Maworde largest model that integrates operation, incubation, and observation in a single system. It delivers precise hypoxic environment control, making it suitable for basic research and small-scale experiments, while ensuring stable and reliable low-oxygen conditions for a wide range of applications.
Precise O2 & CO2 Control
O₂ Control Range: 0.1%–25.0%, in 0.1% increments
CO₂ Control Range: 0%–20.0%, in 0.1% increments (upgradeable to 0–60.0%)
- Optional Built-in Air Pump: Eliminates the need for an external compressed air source (O₂ control range: 0.1%–18%)
Optional Anaerobic Control: Enables integrated hypoxia/anaerobic dual-mode operation
Glove Entry System (GES)
Superior Airtightness: Gloves are fully integrated with the system, effectively preventing ambient air ingress during operation and protecting the internal gas environment
Stable Operation: Maintains a consistent internal atmosphere, ensuring accuracy and reproducibility for sensitive experiments
- Optional replaceable glove entry system (RGES)
Advanced Gas Circulation Design
Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
Integrated bent-panel construction with anti-condensation viewing window technology ensures clear visibility and enhanced durability
Multi-Stage Hypoxia Cycle
Supports 4, 10, or more automated gas cycling stages to suit different experimental needs
Users can set cycle duration, gas concentrations, and the number of cycles according to their experiment requirements
HEPA Filtration System
Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
Effectively protects both samples and operators by minimizing the risk of contamination
Designed for applications with stringent cleanliness requirements, including microbial handling and cell culture

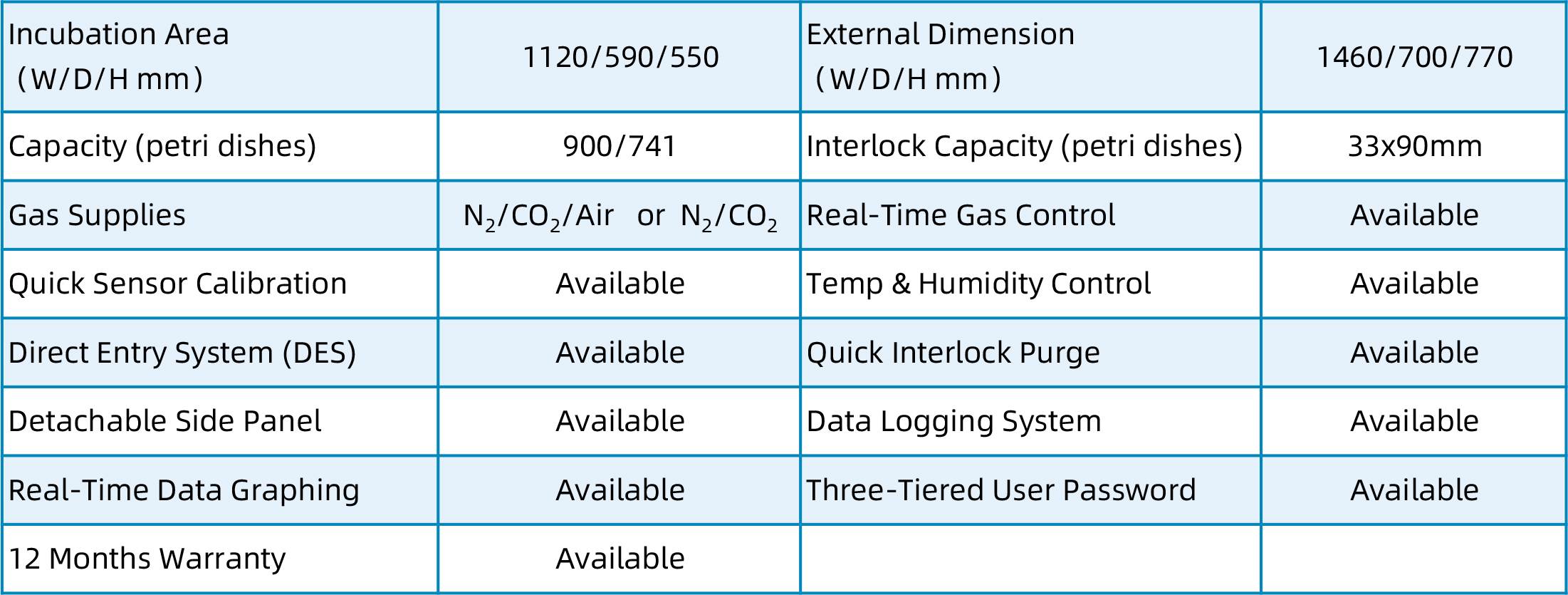

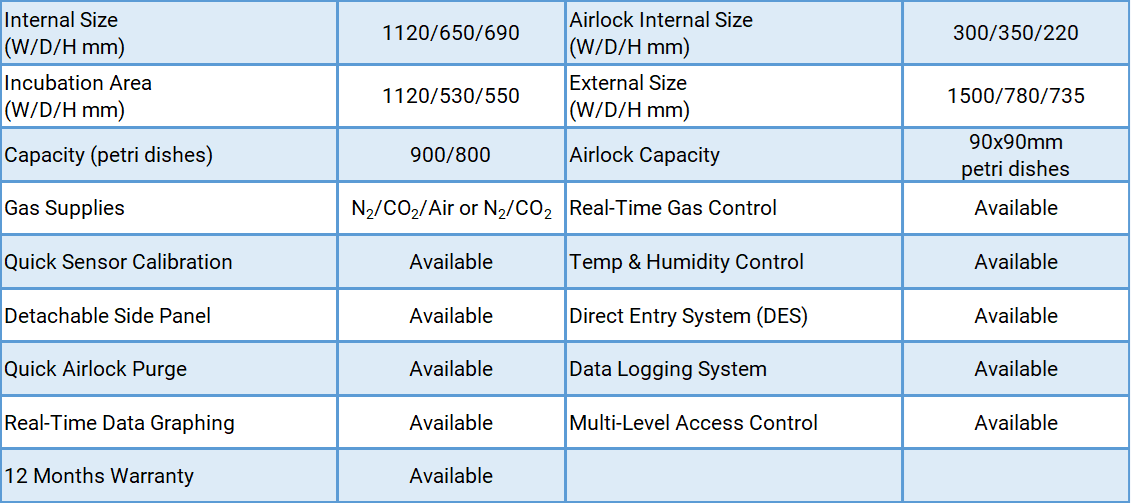

DY-TME Specification
Key Specification:
Our workstation ensures precise, reliable culture conditions with:
O₂ Control Range: 0.1%–25.0%, in 0.1% increments
CO₂ Control Range: 0%–20.0%, in 0.1% increments
- Humidity Control: Room humidity to 85%
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- HEPA Filtration System: High-efficiency HEPA filtration for particulate contamination control
- Programmable Hypoxic Cycle: Automated adjustments of O2 and CO2 concentrations for efficient sample stimulation
- Cable Port: Integrated cable access for internal equipment connection
- Sidewall Pipette Holder: Integrated sidewall-mounted pipette holder
- Single Plate Entry System (SPES): Rapid single-plate transfer system
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Cooling System: Enables low-temperature conditions for specialized experiments
- Micro-Pressure Chamber: Offer precise regulation of static pressure ranging from 0 to 35 KPa (0 to 5 PSI), with an adjustment accuracy of 0.1 KPa
- Anaerobic System: Combined hypoxic and anaerobic operation in one workstation
- Additional Options Shown Below
Optional Feature
Interested in different sizes or customized dimensions? Click the button below for more options:
