YY-XLE
Time Relay Control
The YY-XLE is the flagship large-capacity model in the E series, designed for routine applications such as microbial culture. It utilizes a time-relay gas control system and a stable temperature control setup, enabling reliable establishment and maintenance of anaerobic environments.
Glove Entry System (GES)
Superior Airtightness: Gloves are fully integrated with the system, effectively preventing ambient air ingress during operation and protecting the internal gas environment
Stable Operation: Maintains a consistent internal atmosphere, ensuring accuracy and reproducibility for sensitive experiments
- Optional replaceable glove entry system (RGES)
Special Gas Circulation Design
Optimized airflow and circulation paths ensure uniform temperature, humidity, and gas concentration distribution
High-performance axial fans enable rapid gas exchange and even diffusion for long-term culture stability
HEPA Filtration System
Integrated H14 HEPA filter (optional U16) effectively protects samples from particulate contamination
Effectively protects both samples and operators by minimizing the risk of contamination
Designed for applications with stringent cleanliness requirements, including microbial handling and cell culture

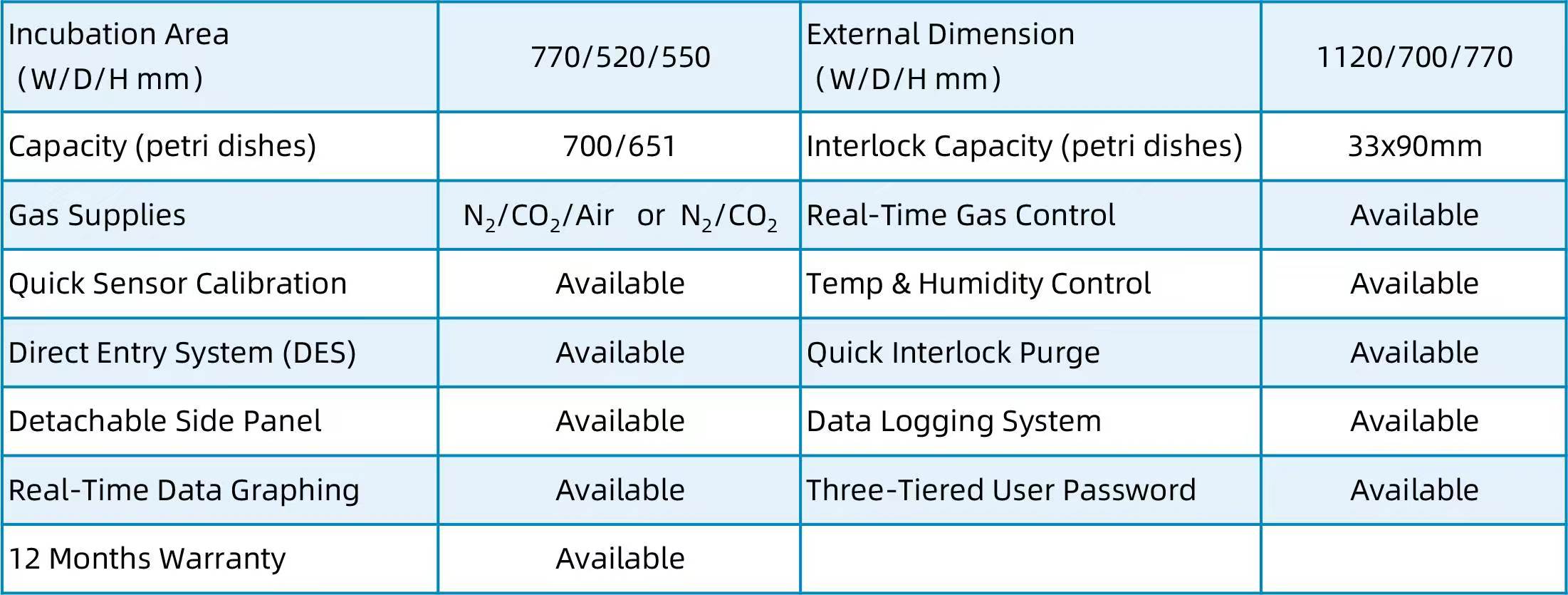

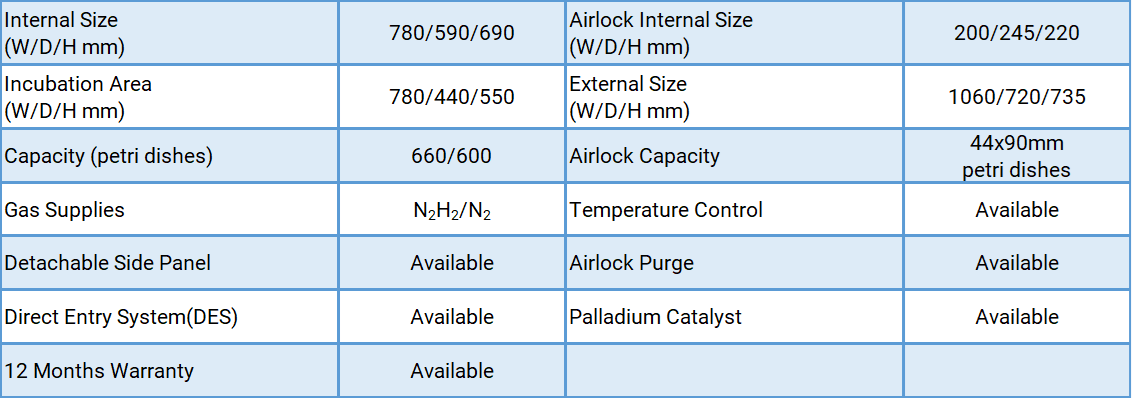

YY-XLE Specification
Key Specification:
Our glove box ensures precise, reliable culture conditions with:
- O₂ Monitoring Range: 0.0% – 25%, in 0.1% increments
- Temperature Control: 3°C above ambient up to 45°C, in 0.1°C increments
- Humidity Control: Room humidity to 85%
- HEPA Filtration System: High-efficiency HEPA filtration for particulate contamination control
- Cable Port: Integrated cable access for internal equipment connection
- <5 ppm Oxygen Control: Ultra-low oxygen control capability below 5 ppm
- Single Plate Entry System (SPES): Rapid single-plate transfer system
- High Temperature Chamber: Provides controlled high-temperature environments (up to 55°C) for experiments
- Cooling System: Enables low-temperature conditions for specialized experiments
- Additional Options Shown Below
Optional Feature
Interested in different sizes or customized dimensions? Click the button below for more options:
